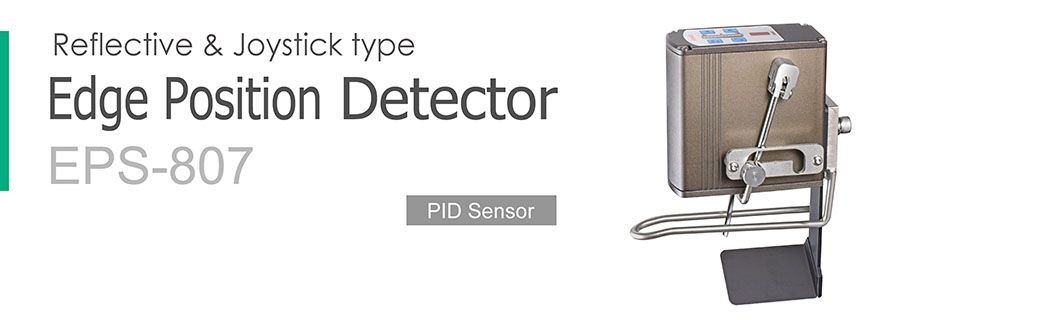

| Edge Position Detector EPS-807, has two types of reflective and joystick, it could be changed to reflective type or joystick type according to the characteristics of materials to detect the fabric edge, EPS-807 uses Infrared light as the light source of detection, emitting light to material edge and receiving the reflective light from target, checking the material edge position in transmission, regardless the material is transparent, black mesh or black cloth, its edge position can be accurately detected, when the material has slack edge (such as “lotus leaf” edge, “whisker-like” edge) situation, could use the joystick of detector to adjust the tension of the material to do edge tension detection, it is suitable for the application of fabric-feeding guiding control in stenter machine. |
|
|
 |
 |
|
| Edge Position Detector EPS-807 |
 |
 |
| System |
|
| Detection method |
Infrared light of reflective type or Joystick contact type |
| Power |
±12Vdc 300mA |
| Lighting source |
Infrared light |
| Receiver |
Photosensitive transistor |
| Detection range |
8mm |
| Regulator |
Adjusting the sensitivity of detection |
| Emitting diameter |
12mm |
| Receiving range |
10mm |
| Response speed |
10 ms |
| Ambient temperature |
0°C ~45°C |
| Ambient humidity |
35 - 85% RH (No condensation) |
| Environment requirement |
No corrosive, no combustible gas, no conductive dust |
| Weight |
1.2Kg |
| Applicable controller |
EPD-58LR(DSD-65A), EPD-335, EPD-55 |
|
|
|
| Mechanic data |
|
| Connection |
Cable |
| Mounting |
Fixed rack |
| Housing |
Aluminum |
| Dimension |
Refer to “Dimension Diagram” |
|
|
|
| Electric data |
|
| Output detection signal |
DC ±8V, 5mA max. |
|
|
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
| Generous Purpose EPC System |
 |
|
|
| |
Controller |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
![]() |
| |
|
