| Joystick type Detector EP-10 uses Infrared light as the light source of detection, emitting light to material edge and receiving the reflective light from target, checking the material edge position in transmission, regardless the material is transparent, black mesh or black cloth, its edge position can be accurately detected, when the material has slack edge (such as “lotus leaf” edge, “whisker-like” edge) situation, could use the joystick of detector to adjust the tension of the material to do edge tension detection, it is suitable for the application of fabric-feeding guiding control in stenter machine. |
|
|
 |
 |
|

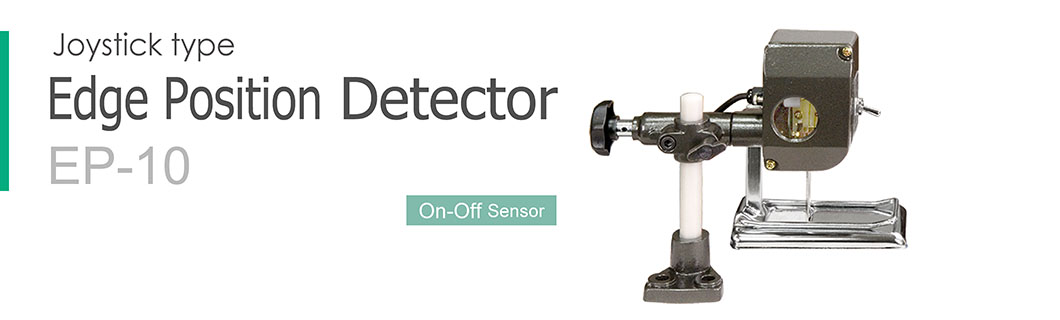

| Edge Position Detector EP-10 |
 |
 |
| System |
|
| Detection method |
Jot-stick contact |
| Detection range |
±5mm |
| Regulator |
Adjusting the sensitivity of detection |
| Dead band |
1mm ~ 8mm |
| Ambient temperature |
0°C ~50°C |
| Ambient humidity |
35 - 85% RH (No condensation) |
| Environment requirement |
No corrosive, no combustible gas, no conductive dust |
| Weight |
1.8Kg |
| Applicable controller |
EPD-335 |
|
|
|
| Mechanic data |
|
| Connection |
Cable |
| Mounting |
Adjusting rack |
| Housing |
Aluminum |
| Dimension |
Refer to “Dimension Diagram” |
|
|
|
| Electric data |
|
| Output |
Contact output ON – OFF – ON; Capacity 500mA 250Vac |
|
|
 |
|
 |
 |
 |
 |
 |
 |
 |
