Controller DSD-65A is combined by an automatic control loop, accepting the material’s edge position error signal of detector, after calculating and processing, output control signal to motor drive of material’s edge position control. It is suitable for the edge position control for paper, fabrics, opaque materials and black mesh, such as materials. |
|
|
• |
Digital type PWM servo-drive system has the features of high-torque and fast response, it makes the movement of edge control be smooth. |
• |
Using regenerative-resistor type of brake, it saves power consumption. |
• |
In case of motor short-circuit or overload-operation, the circuit will instantly be cut off to protect the controller and the motor from damage. |
|
|
|
|

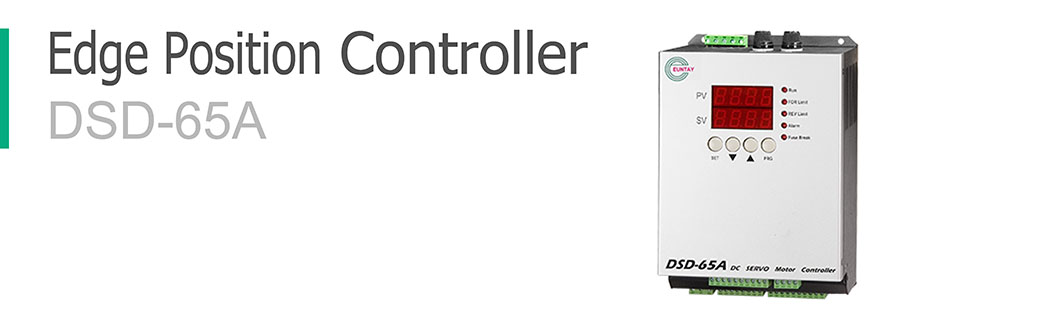

Edge Position Controller DSD-65A Specifications |
|
|
System |
|
Power |
1∮, AC 220V±10%, 50 / 60Hz±5%, 1.5KVA |
Speed control type |
PWM reversible control |
Brake type |
Regenerative-resistor type of brake |
Ambient temperature |
0°C ~40°C |
Ambient humidity |
85% RH below (No condensation) |
Protection |
Overload, Short-circuit, Surge, Over-current of power,
control-signal and limit switch |
Environment requirement |
Without corroded gas, flammable gas and conduction dust,
below 1000 meters above sea level |
Weight |
2Kg |
Applicable detectors |
EPS-5051, EPS-623SD, EPS-807 |
Applicable drive devices |
EPM-52 |
|
|
|
Mechanic data |
|
Mounting |
Screwed-mount |
Housing |
Iron-shell |
Dimension |
Refer to “Dimension Diagram” |
|
|
|
Electric data |
|
Detector’s power |
DC±12V, 200mA max. |
Speed’s detector |
Armature voltage detection |
Speed control range |
Armature voltage DC 0 ~ ±75V |
Speed commend |
DC 0 ~ ±8V |
|
|
|
|
|
|
|

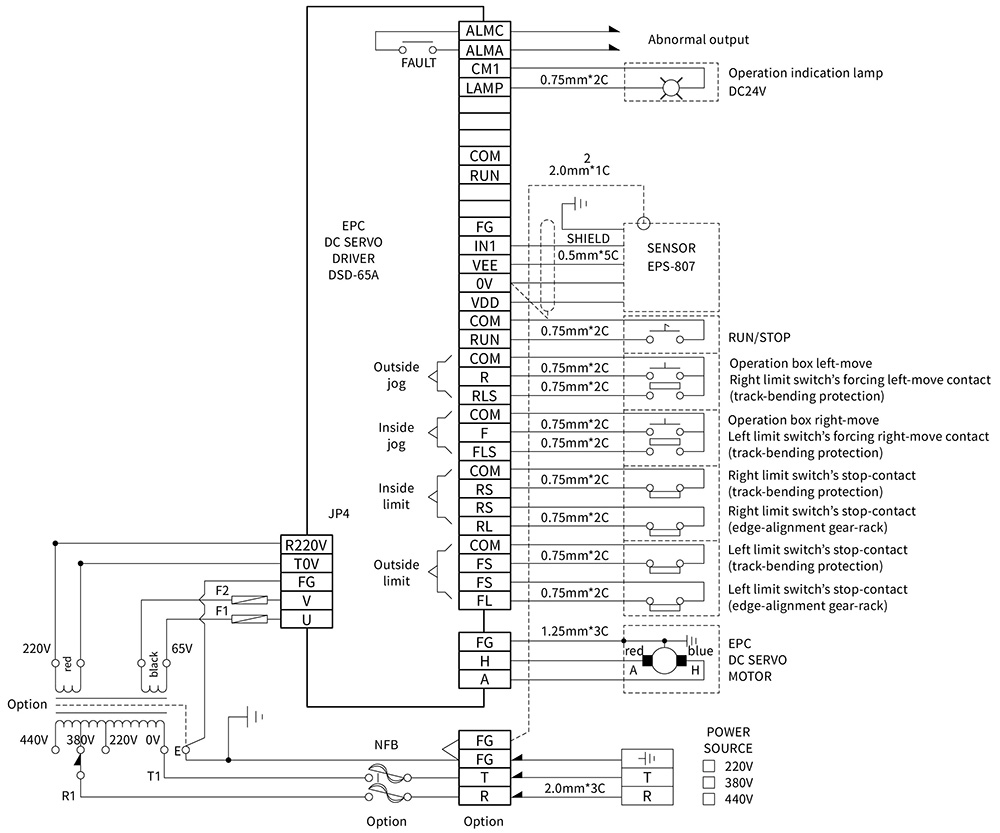

Edge Position Controller DSD-65A Wiring Diagram |
|
|
|
|
|
|
|

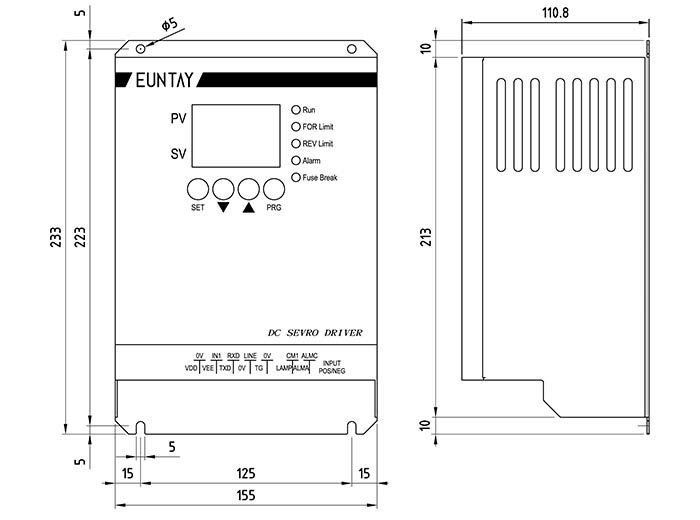

Edge Position Controller DSD-65A Dimension Diagram |
|
|
|
|
|
|
|

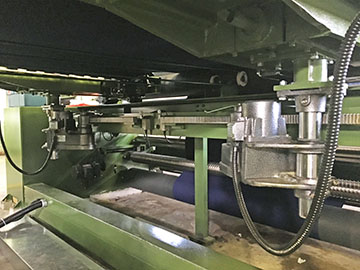

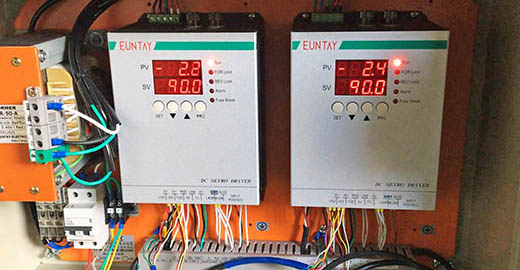

Edge Position Controller DSD-65A Application Examples |
|
|
|
|
|
|
|

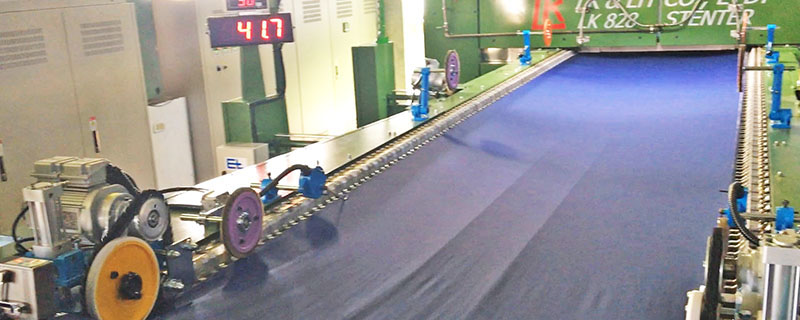

Controller PSD-65A is applied to the detection of fabric edge position in Stenter Machine. |
|
|
|
|
|
|
