| Illuminative type Detector EPS-5042 uses Infrared light as the detection light source, won’t be influenced by ambient light, high-sensitivity, resolution range of 0.25mm ~ 10mm, which could be adjusted according to the characteristics of material, could detect material edge accurately, is suitable for the detection of materials; such as paper, fabrics, opaque materials, black mesh materials,…etc. |
|
|
 |
 |
|

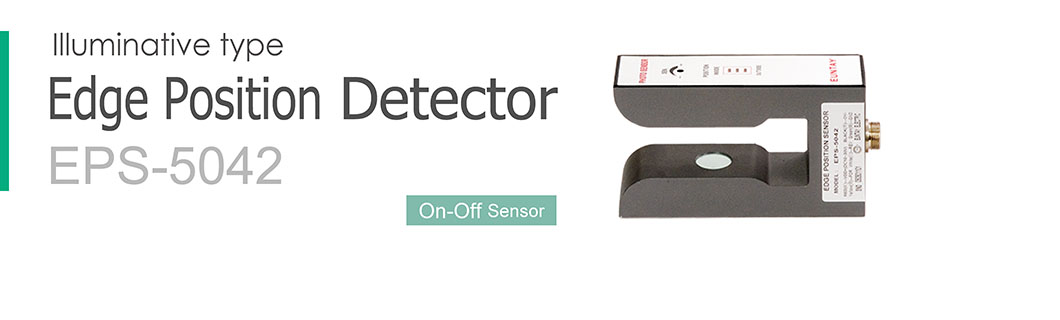

| Edge Position Detector EPS-5042 |
 |
 |
| System |
|
| Detection method |
Illuminative type Infrared light |
| Power |
DC +10V ~ 30V 200mA |
| Lighting source |
Infrared light |
| Receiver |
Photosensitive transistor |
| Detection range |
±10mm |
| Regulator |
Adjusting the sensitivity of detection |
| Emitting diameter |
12mm |
| Receiving range |
12mm |
| Response speed |
10 ms |
| Ambient temperature |
0°C ~45°C |
| Ambient humidity |
35 - 85% RH (No condensation) |
| Environment requirement |
No corrosive, no combustible gas, no conductive dust |
| Weight |
0.7Kg |
| Applicable controller |
AMP-232, AMP-1151 |
|
|
|
| Mechanic data |
|
| Connection |
Cable |
| Mounting |
Adjusting rack |
| Housing |
Aluminum |
| Dimension |
Refer to “Dimension Diagram” |
|
|
|
| Electric data |
|

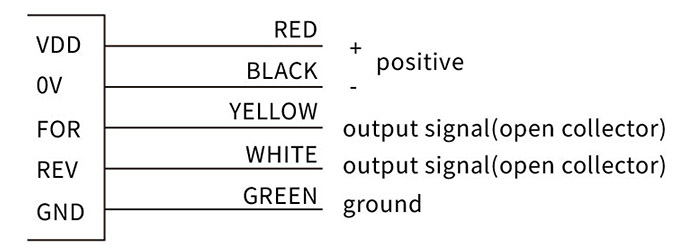

| Output detection signal |
Double set of Open-collector |
|
|
 |
|
 |
 |
|
| Edge Position Detector EPS-5042 |
|
|
|
|
|
 |
|
| Edge Position Detector EPS-5042 |
|
|
|
|
|
 |
 |
 |
 |
| Generous Purpose EPC System |
 |
|
|
| |
Controller |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
![]() |
| |
|
