| Reflective type Detector EPS-623-SD uses Infrared light as the light source of detection, emitting light to material edge and receiving the reflective light from target, checking the material edge position in transmission. Because just installing detector of single case, it saves space and don’t need to adjust light axis, the detection is accurate, whether the materials are transparent, black mesh or blank color. |
|
|
 |
 |
|
| Detector EPS-623-SD |
 |
 |
| System |
|
| Detection method |
Reflective type Infrared light |
| Power |
±12Vdc 200mA |
| Lighting source |
Infrared light |
| Receiver |
Photosensitive transistor |
| Detection range |
8mm |
| Emitting diameter |
12mm |
| Receiving range |
10mm |
| Control-mode selection |
Auto or Manual control-mode |
| Response speed |
10 ms |
| Ambient temperature |
0°C ~45°C |
| Ambient humidity |
35 - 85% RH (No condensation) |
| Environment requirement |
No corrosive, no combustible gas, no conductive dust |
| Weight |
0.5Kg |
| Applicable controller |
AMP-1151, EPD-335, EPD-3008&P, GK-6000 |
|
|
|
| Mechanic data |
|
| Connection |
Cable |
| Mounting |
Fixed rack |
| Housing |
Plastic |
| Dimension |

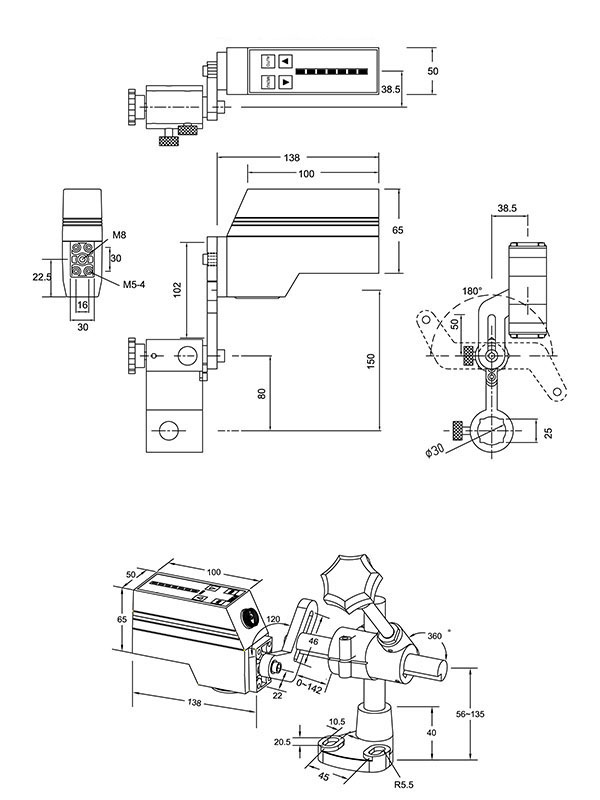

Refer to “Dimension Diagram” |
|
|
|

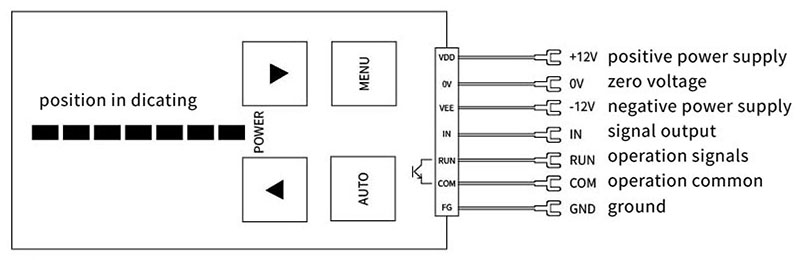

| Electric data |
|
| Output detection signal |
DC ±8V, 5mA max. |
| Controller’s control |
Open collector output; Enable · Disable controller |
|
|
 |
|
 |
 |
|
| Detector EPS-623-SD |
|
|
| |
|
 |
|
| Detector EPS-623-SD |
|
|
|
 |
|

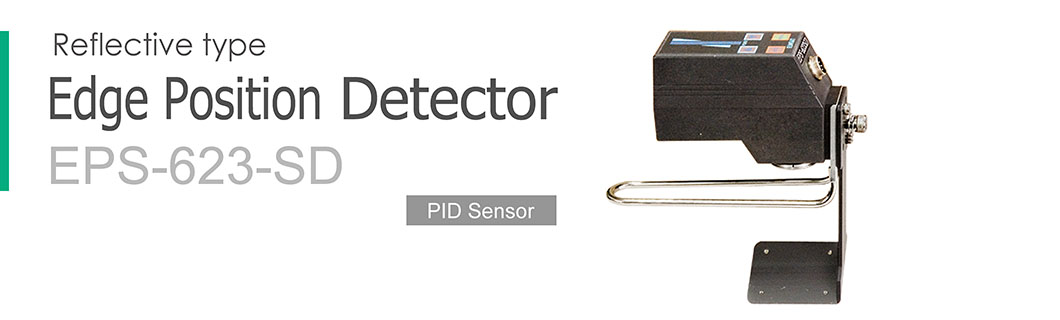

| Edge Position Detector EPS-623-SD |
|
|
|
|
|

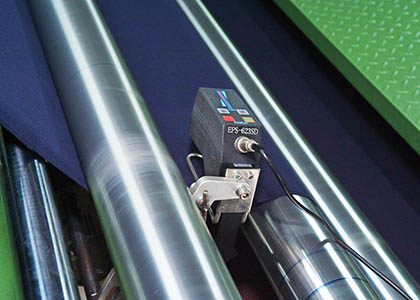

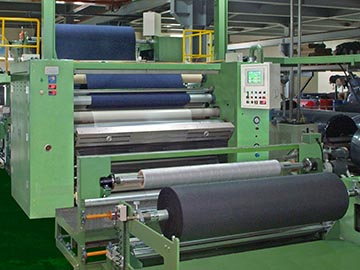

| Reflective type detector EPS-623SD is applied to the detection of fabric edge position in fabric laminating machine. |
|
|
 |
 |
 |
 |
